Trampoline to fit a Nacra 5.5 SL catamaran made in America by skilled artisans at SLO Sail and Canvas.

Nacra 5.5 SL Catamaran Trampoline - Bias Cut Mesh

×
×
Price:
$412.36
Availability:
Shipping time varies by season. View current lead time in product description.
Shipping:
Calculated at checkout
Quantity:
Description
Reviews
Related Products
Product Videos
Why SLO Sails
Warranty
Also Viewed
By Category
Other Details
  • Product Description



    Overview:

    Our heavy-duty mesh trampoline is very well built with these unique features:

    • Bias cut one-piece design for uniform tension

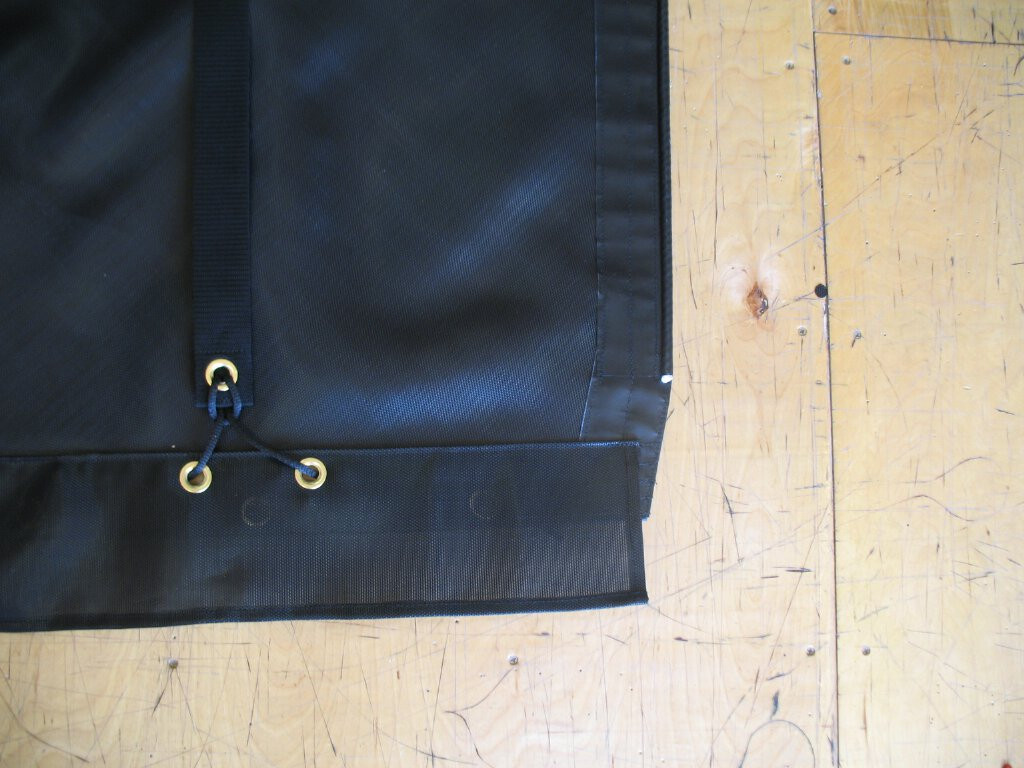

    • Rear lacing only with built in rear linecatcher
    • 12 x 12" halyard pocket near the mast base
    • Adjustable hiking straps
    • Large pocket for jib wires across the center of the trampoline
    • Made of high-quality and very durable trampoline mesh (8oz. polypropylene basket weave mesh)
    • Sewn with large size V-138 UV-stabilized polyester thread
    • Heavily reinforced with 3" wide heavy-weight polypropylene webbing in rear grommet areas
    • At least five rows of stitching in high-load areas (compared to 2 rows from other manufacturers)
    • Multi-layer construction in high-stress sections to better spread the load: three layers of mesh and a layer of webbing
    • We personally pound each #4 spur grommet by hand (spur grommets are tough; they have 'teeth' that bite into the fabric)
    • Trapeze grommets located 32 inches aft of front beam



    Includes:

    • One-year warranty against defects in materials and workmanship
    • Halyard Pocket
    • Hiking Straps



    Available Options (at an extra cost):

    • Tenara Teflon Thread - By adding this option to your trampoline order we'll sew your new SLO Sail and Canvas trampoline in Tenara Teflon thread by Gore. Tenara has a 15 year warranty in the sun. If you store your boat on the beach this is the best thing you can add to extend the life of your trampoline. Our standard thread is a V-138 polyester thread that is UV stabilized and will last 5-7 years+ in the sun.
    • Zippered Pocket - A larger zippered pocket perfect to hold water bottles, lunch, or sunscreen. The pocket dimensions are roughly 15"x18" and 4" tall. Dimensions may vary slightly depending on the trampoline because of other things getting in the way of a bigger pocket such as hiking straps and lacing grommets, trapeze grommets, jib strop grommets etc. We put the pocket inboard of the hiking straps on Hobie 14 and Hobie 16's on the starboard side of the trampoline. Prindle trampolines will have the zippered pocket on the port side of the trampoline inboard of the hiking straps and opposite the standard halyard pocket we include on all trampolines.
    • Lace Kit - Pre cut 1/4" (and sometimes 1/8") line to lace up your new trampoline. Available in white or black.



    Notes:

    If your Nacra 5.5 has a Main and Jib- this trampoline is for you. If your boat has a main only take a look at our Nacra 5.5 Uni trampolines. The dimensions are the same but the 5.5SL trampoline has a cover/ pocket over the jib strops.

    Non USA Nacra catamarans may require a narrower trampoline. Measure your boat to make sure it is the same width as listed below. Also click here for more info

    Nacra 5.5 (SL and Uni)

    • Trampoline Width (US Boats): For Width: 77 3/8 inches - Aft Width: 78 1/4 inches
    • Trampoline Width (Australian Boats): 73.25 inches (186cm)



    Additional Info:

    CLICK HERE TO VIEW NACRA OWNERS MANUAL 1985

    CLICK HERE TO VIEW NACRA 5.2 5.5 ASSEMBLY MANUAL

    CLICK HERE TO VIEW PERFORMANCE CATAMARAN PART LIST FOR NACRA AND PRINDLE



    Slideshow image

    Prev Next



  • Product Reviews

    ×

    This product hasn't received any reviews yet. Be the first to review this product!

    Write A Review

  • Why SLO Sails

    Why SLO Sail and Canvas?

    Because we take the time to make sure you are getting what you want and need. Our knowledgeable designers are available by phone or email and can work with you to incorporate any special requests. Our products are warranted against defects due to workmanship or material flaws for 1 year. All our products are made in the USA, on the central coast of California.
